Multilayer boards

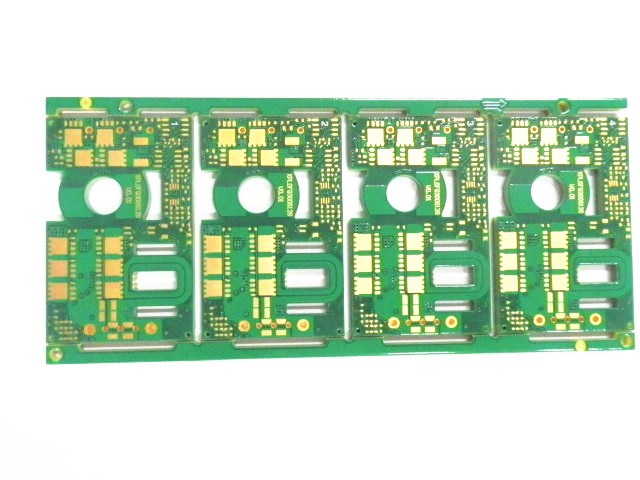

                                           10-layer board

                                            Parameters

                                            Thickness: 4.415±0.4mm

                                            Min. Distance Between Line and  Width: 0.3mm/0.2mm

                                            The minnimum Distance of Via to Trace: 0.2mm

                                            Min. Hole Size: 0.4mm

                                            Process

                                            Surface treatment: ENIG

                                            Heavy Copper:6OZ

                                            Ratio of Thickness to Via Diameter 11:1

                                            Induction-coil control
