FPC Rigid-Flex

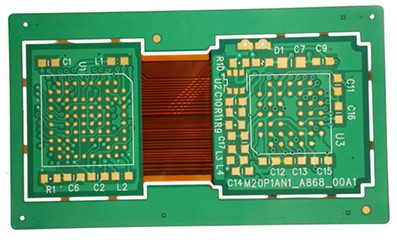

                                             6-layer Rigid-flex board

                                             Parameters

                                             Layers: 6L (4R+2F)

                                             Thickness: 1.6±0.16mm

                                             Min. Distance Between Line and Width: 0.2mm/0.2mm

                                             Min. Buried Via/PAD: 0.4mm/1.0mm

                                             Min. Distance from Via to Line: 0.3mm

                                             Thickness: Surface Copper≥35um; Min. Hole Copper: 30um; Average: 35um

                                             Impedance: 50±10%

                                             Surface Treatment: ENIG
